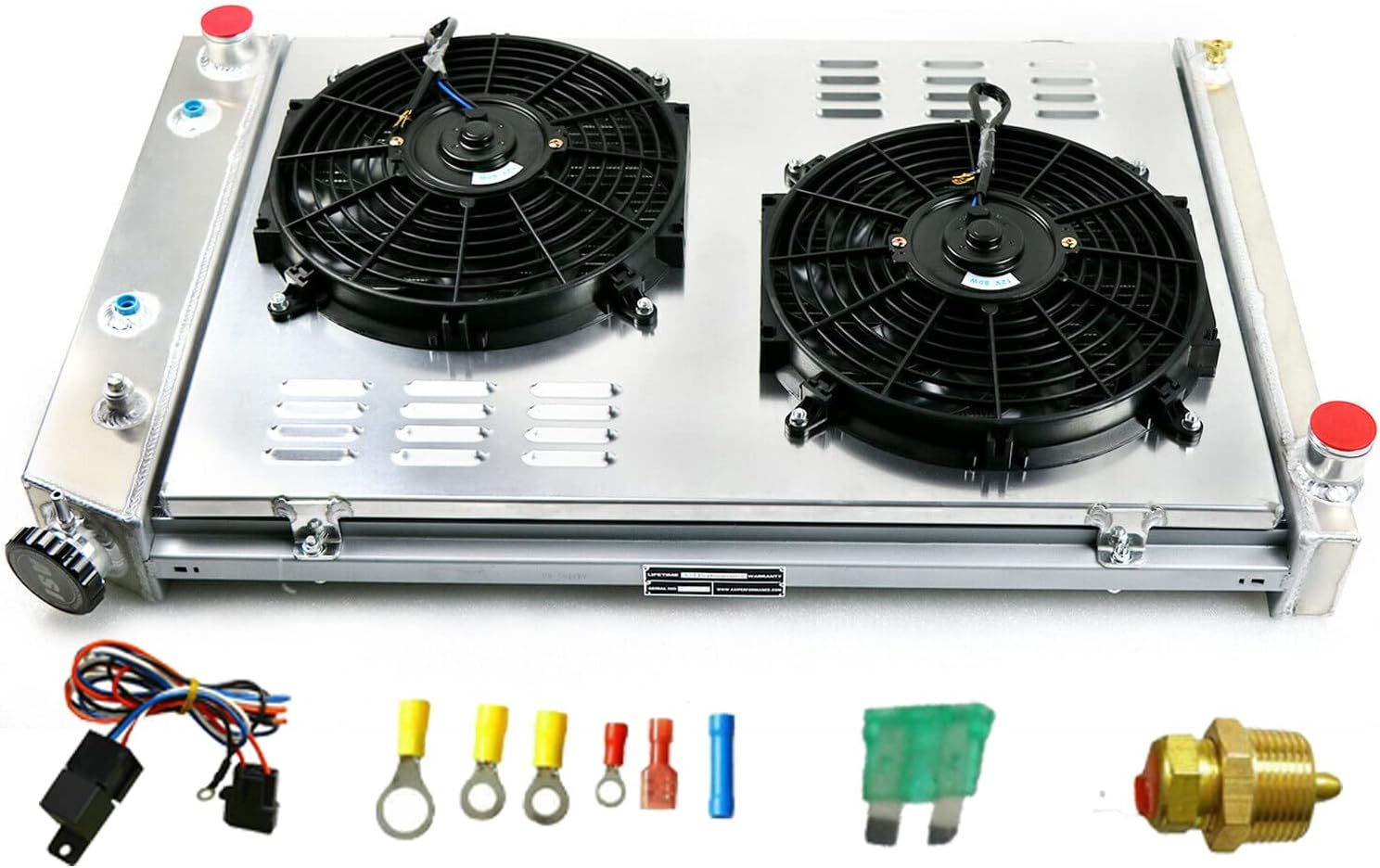

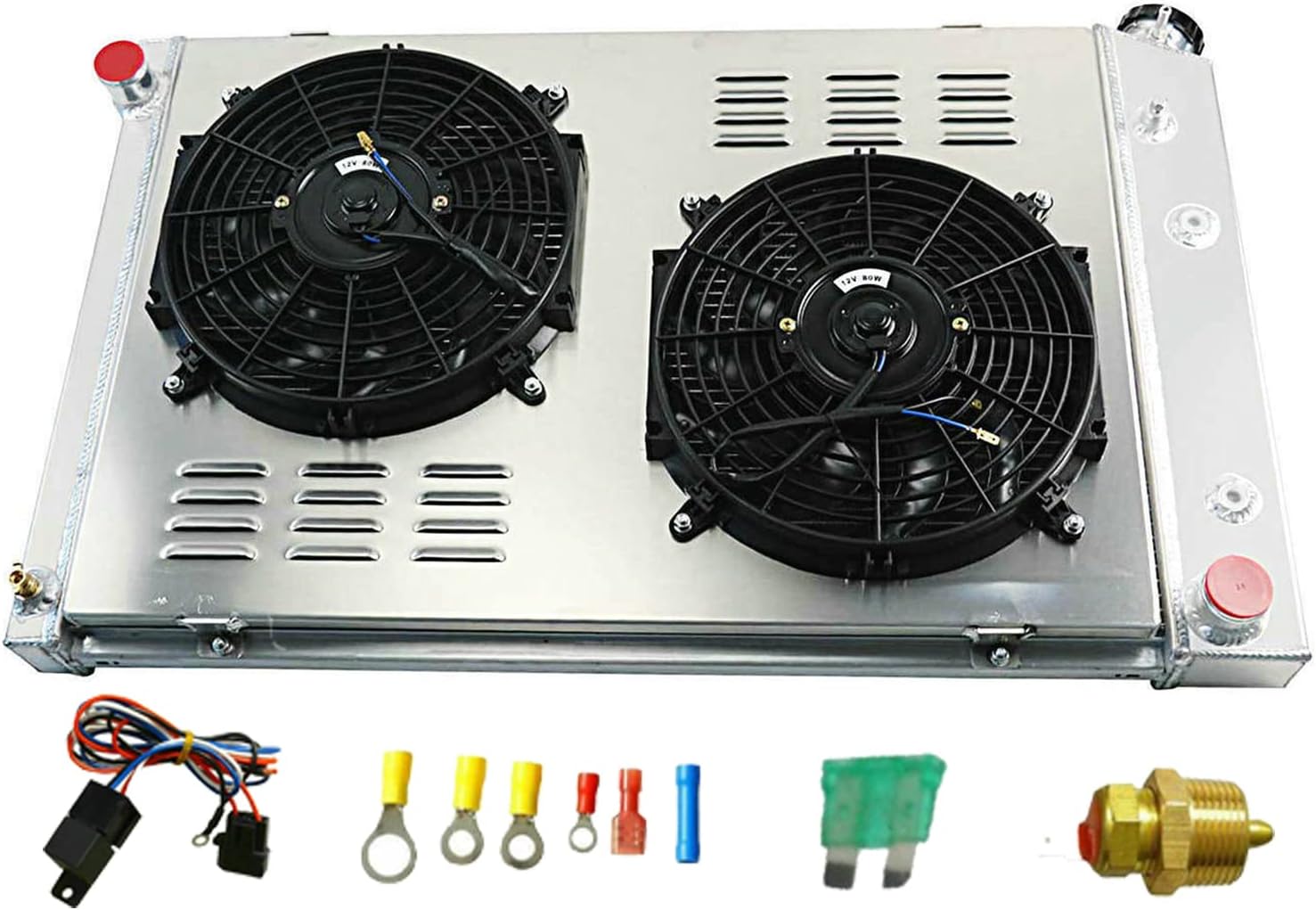

Aluminum Radiator for 1981-1991 Chevy K10 K20 K30 C10 C20 C30 C1500 C2500 C3500 Blazer/1973-91 Gmc C1500/C2500 Suburban Jimmy 4 Row Radiators Shroud 2 X 12" Fans Relay

Fitment: For Chevy Blazer 1987-1991 For Chevy C10 1981-1985 For Chevy C1500 1988-1990 For Chevy C20 1981-1985 For Chevy C2500 1988-1990 For Chevy C30 1982-1986 For Chevy C3500 1988-1990 For Chevy K10 1981-1986 For Chevy K20 1981-1986 For Chevy K30 1981-1986 For GMC C1500 1982-1986,1988,1989 For GMC C1500 Suburban 1979-1984 For GMC C2500 1982-1986,1988-1990 For GMC C2500 Suburban 1982-1986 For GMC C3500 1981-1986,1988-1990 For GMC Jimmy 1973-1991 Package Include: 1 X 4-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 2 X 12" Fans (Includes mounting kits) 1 X Thermostat Relay Kit FAN SPEC: Maximum Fan CFM: 2300±200 Fan Diameter X Height X Thickness:12.05" X 12.05" X 2.5" Number of Blades: 10 blades (Plastic) Amp Draw: 12.70 amps Maximum Fan RPM: 2,250 rpm Radiator Details: Fitment Type: Direct Replacement Crafts: 100% Tig welded Delivery: Local Delivery Placement on Vehicle: Engine Compartment Style: Crossflow Mounting Style: Bolt-On OE/OEM Part Number: 716, SBR716 CC716, CU716, DPI716 CU1599, EC716, AE716, MC716 Other Part Number: 438716 433716 1605-370200 0716-2AA CR1599 Part Number: 1599 8011599 3687 2308 REA411599A SPTCU1599 CU1599 Relay Kit Instructions: RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Thermostat Relay Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.

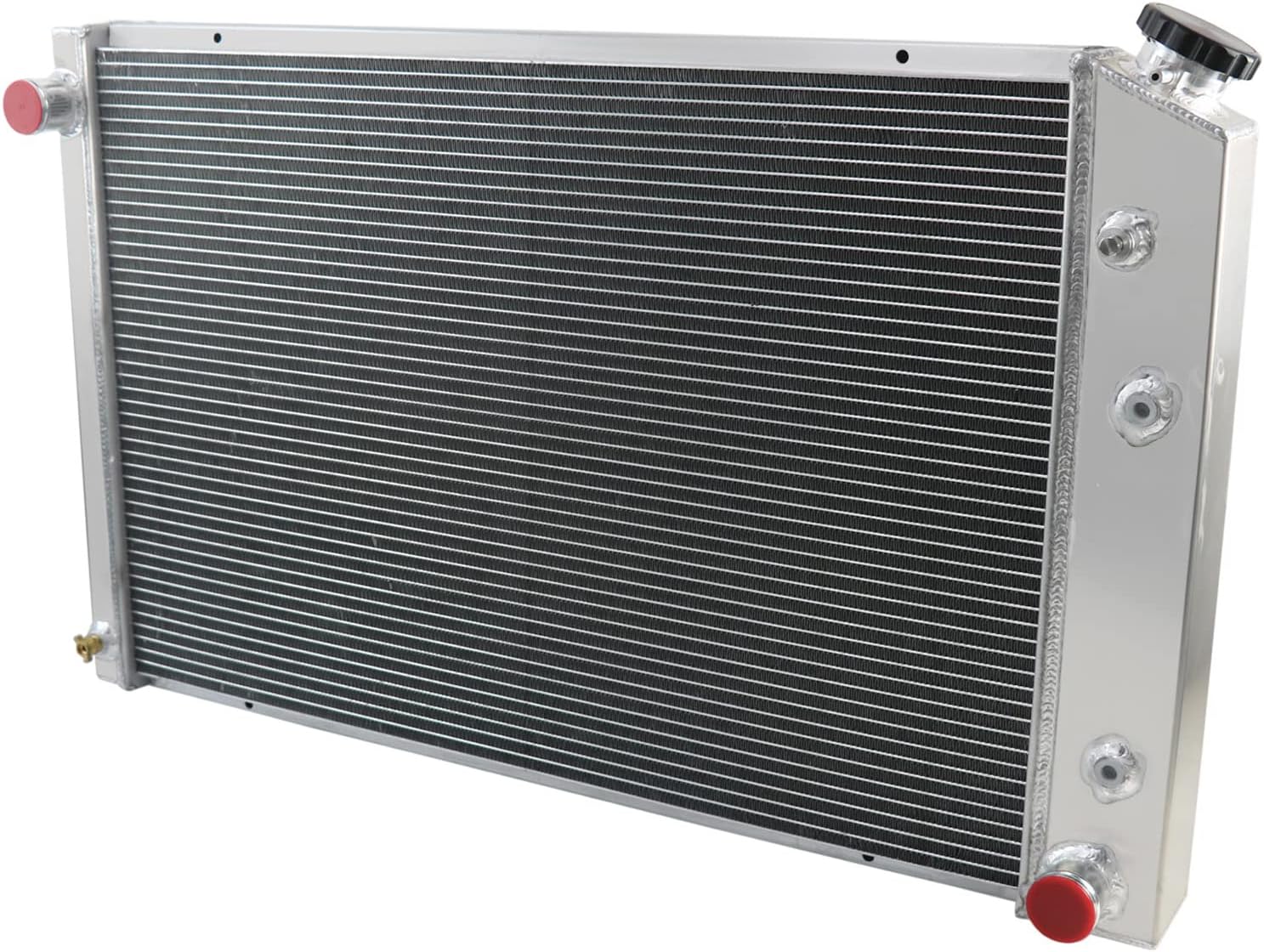

• Core Size : 28.23" H x 18.82" W x 2.44" T ; Overall Size : 33.78" H x 20.59" W x 5.04" T ; Upper inlets : 1.5" located on the driver side ; Lower outlets : 1.5" located on the passenger side
• Transmission Oilcooler : ￠32×215×G1/4（Z）; Transmission: Automatic and Manual ; Includes CNC machined filler neck and cap,OEM Style Brass Petcock Drain
• High-quality material: Transmission Oil Cooler is constructed of high quality AA5052 aircraft grade aluminum construction to ensure an extremely long lasting operate life. The core of the Transmission Oil Cooler is welded in vacuum brazing furnace, no epoxy.
• Easy To Install: Light weight direct bolt-on replacement, stronger & higher capacity for coolant.Features: 100% Leak Tested, Durability Tested, No Drilling or Modifications Needed for Installation ; One-year warranty. For any issues, please contact us immediately. We will resolve the matter for you.
• Brazed core technology to guarantee optimum performance and dependability ; Carefully crafted to exceptional OE standards for precise fit.
